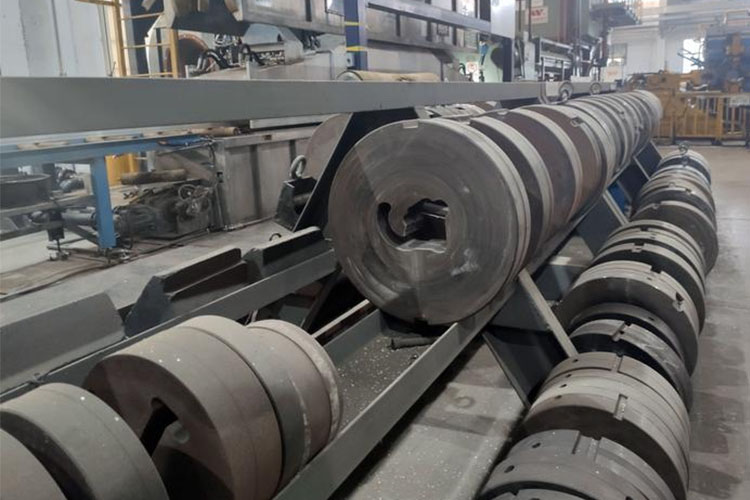

How Long to Open Aluminum Mold and Get Extrusion Sample
For product designers, structural engineers, and global procurement managers, "Time-to-Market" is everything. When launching a new industrial component or a custom architectural framing system, your entire production schedule hinges on one critical bottleneck: how fast your extruder can cut a new steel die and deliver physical, qualified samples to your inspection team.
At Aluleader, we operate a dedicated, high-precision tooling facility. To help you secure your downstream timeline, here is an honest engineering breakdown of the exact step-by-step timeline required to open a custom aluminum extrusion mold and get your first article samples.
The Standard Timeline: 10 to 15 Working Days
On average, a standard custom aluminum profile mold takes between 10 to 15 working days from the final drawing sign-off to the day the first samples are shipped to your port. This timeline is dictated by precise metallurgical and machining phases that cannot be rushed without compromising the structural safety of the die.
Phase 1: CAD Design Verification and Engineering Sign-off (1–2 Days)
Before a single piece of steel is cut, our technical team conducts a thorough review of your custom cross-section geometry. We check for hidden design flaws that could cause split dies or uneven wall thickness during hot extrusion.
The Process: We analyze wall thickness ratios, tongue ratios, and symmetrical tolerances to ensure the profile can be extruded smoothly. Once our optimized engineering drawing is approved by your team, the mold fabrication clock officially starts. (Browse our geometry tolerances on our
Custom Aluminum Extrusions
Phase 2: CNC Machining and EDM Wire Cutting (5–7 Days)
Aluminum extrusion dies are crafted from premium H13 hot-work tool steel, engineered to withstand extreme pressures and extrusion temperatures of around 480°C.
The Machining Steps: The steel block is first rough-lathed, followed by precision CNC milling of the bolsters and backer plates. The critical "bearing land"—the precise orifice that shapes the aluminum molecule flow—is cut using advanced Electrical Discharge Machining (EDM) wire-cutting equipment. This phase demands extreme precision to keep structural tolerances within ±0.1mm.
Phase 3: Heat Treatment and Gas Nitriding (2–3 Days)
Raw H13 steel is too soft to withstand the thousands of tons of hydraulic pressure exerted by an extrusion press. The machined die must undergo vacuum heat treatment to harden the steel matrix to 48-52 HRC (Rockwell Hardness). Following the hardening process, the die undergoes gas nitriding, creating an ultra-hard, wear-resistant nitride layer on the bearing surfaces. This ensures the mold does not warp or scratch your profiles during the production run.
Phase 4: First-Trial Testing and Sample Inspection (1–2 Days)
Once the die is fully treated, it is pre-heated and loaded into our automated extrusion press for its first trial run.
The First Article Inspection (FAI): The first few meters of extruded aluminum are cut and sent immediately to our quality control laboratory. We verify wall thickness with digital calipers, test the material's mechanical properties with a Webster tester, and check cross-sectional geometry against your original CAD files.
A delayed sample means a delayed product launch, costing your factory thousands in missed market opportunities. Working with slow, unverified extrusion workshops often leads to weeks of infinite delays, unpolished samples, and out-of-tolerance dimensions that force you back to the drawing board.
At Aluleader, we compress your supply chain cycle. By combining advanced in-house EDM tooling with immediate trial press scheduling, we guarantee rapid, precise mold creation and provide you with certified First Article Inspection reports alongside your physical samples.
Do you have a project that demands a fast turnaround and strict technical precision?
