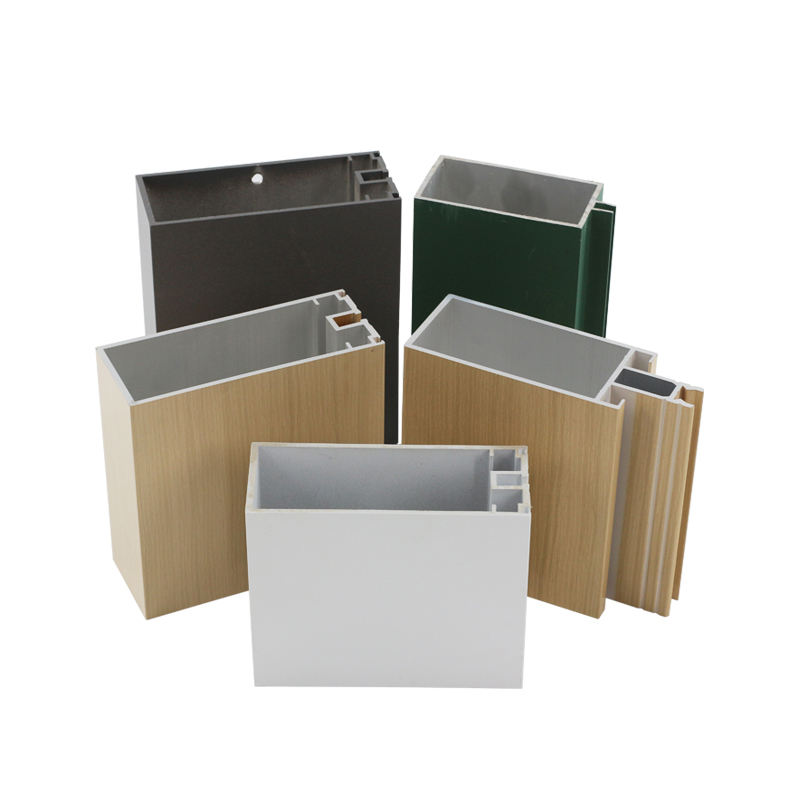

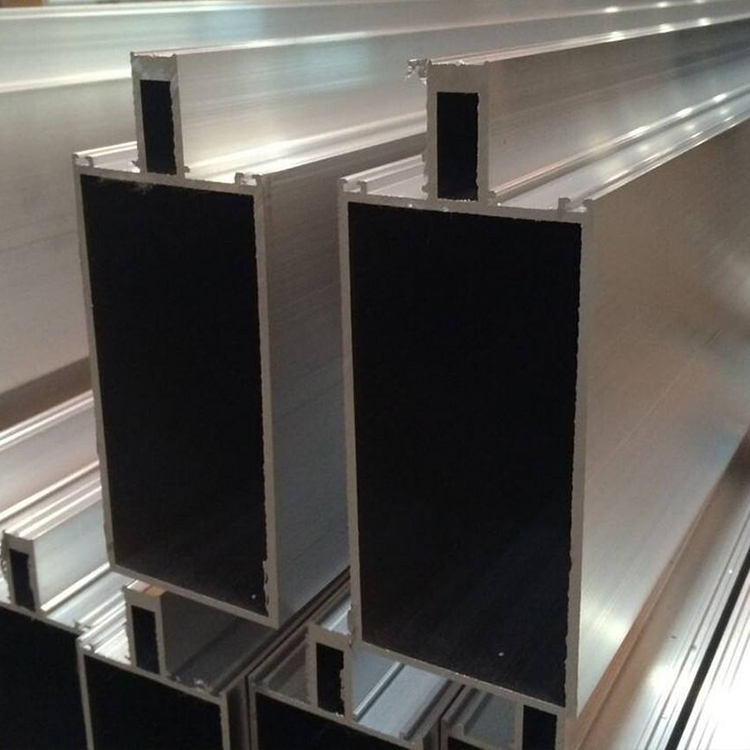

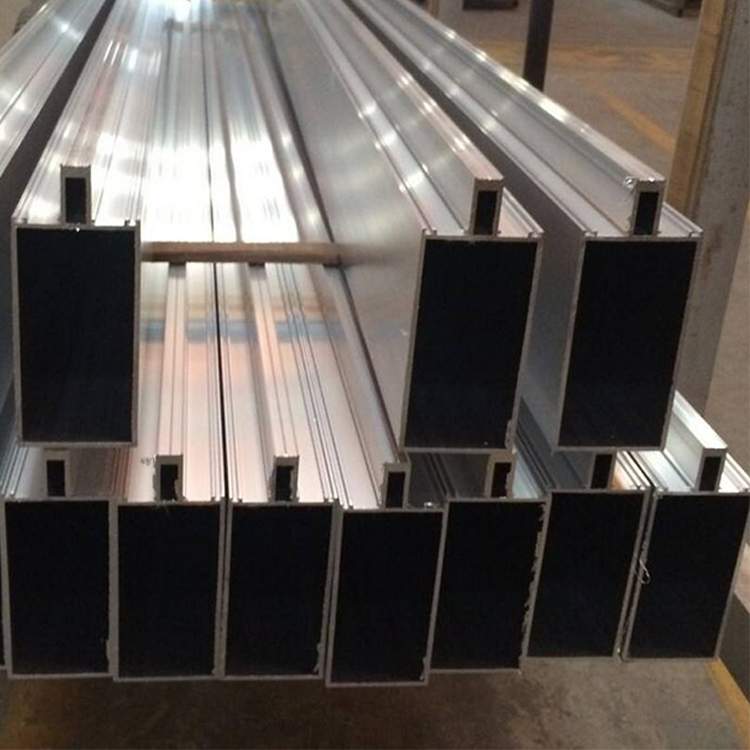

Aluminum Curtain Wall Mullion Profiles | Architectural Facade Extrusion Profiles

Aluminum curtain wall mullion profiles are core architectural extrusions used for modern building exterior facade systems. As an essential part of architectural aluminium profiles, curtain wall mullion aluminum frames provide stable structural support, weather resistance, and modern aesthetic effects for high-rise buildings, commercial towers, office buildings, shopping centers, public facilities and large-scale municipal projects.

Different from ordinary window and door profiles, curtain wall aluminium extrusions are designed for long-span facade bearing, outdoor long-term exposure, high wind pressure resistance and high safety standards. With strict dimensional tolerance, thicker wall structure and professional surface treatment technology, modern curtain wall aluminum profiles have become the mainstream solution for global high-end building exterior decoration.

Material Grade & Mechanical Performance

Curtain wall projects globally adopt standardized 6000-series magnesium-silicon aluminum alloys. Aluleader provides two professional grades for different engineering requirements:

6063-T5/T6 is the most widely used curtain wall alloy worldwide. With fine surface texture, precise extrusion performance and stable weather resistance, it is suitable for mid-rise buildings, conventional curtain wall systems, hidden frame and exposed frame facades. It delivers balanced decoration performance and structural stability, meeting most commercial building wind pressure and load standards.

6061-T6 High-Strength Structural Grade

6061-T6 features significantly higher tensile strength and deformation resistance. This grade is specially used for super high-rise buildings, coastal wind-resistant projects, large-span unitized curtain walls and heavy-load facade structures. It belongs to high-strength industrial aluminium profiles and ensures long-term structural safety under extreme weather conditions.

Structural Classification of Curtain Wall Profiles

According to international architectural design standards, aluminum curtain wall profiles are divided into three mainstream systems:

1. Stick Curtain Wall Profiles

Traditional assembled frame system with visible mullions and transoms. Easy installation, flexible construction and cost-effective for standard commercial buildings.

2. Unitized Curtain Wall Profiles

Factory pre-assembled unit frames with high precision and tight tolerance. Suitable for super high-rise buildings and high-standard facade projects, featuring fast site installation and strong overall stability.

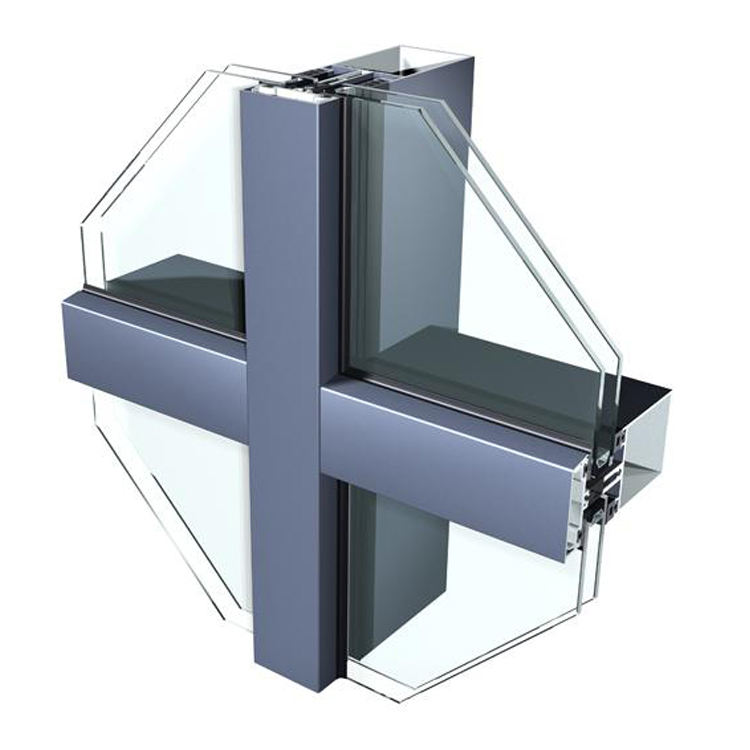

3. Hidden & Semi-hidden Frame Curtain Wall Profiles

Minimal visible frame design, creating clean and modern building appearances. Widely used in luxury commercial plazas, exhibition centers and urban landmark buildings.

Professional Surface Treatment Options

Outdoor curtain wall materials require ultra-high weather resistance to resist UV radiation, acid rain, salt spray and temperature changes.

• Anodizing: Hard oxide layer, scratch-resistant, stable color, suitable for urban conventional buildings

• Powder Coating: Rich color options, uniform texture, excellent decoration performance

• PVDF Fluorocarbon Coating: Top-grade outdoor finish, 25–30 years service life, anti-fading and anti-corrosion for coastal and high-pollution areas

Technical Specifications & Quality Standard

• Standard wall thickness: 2.0mm–3.5mm according to building height

• Strict extrusion tolerance: ±0.1mm precision control

• Fully customized cross-section, mullion height, transom structure and assembly groove

Application Scope

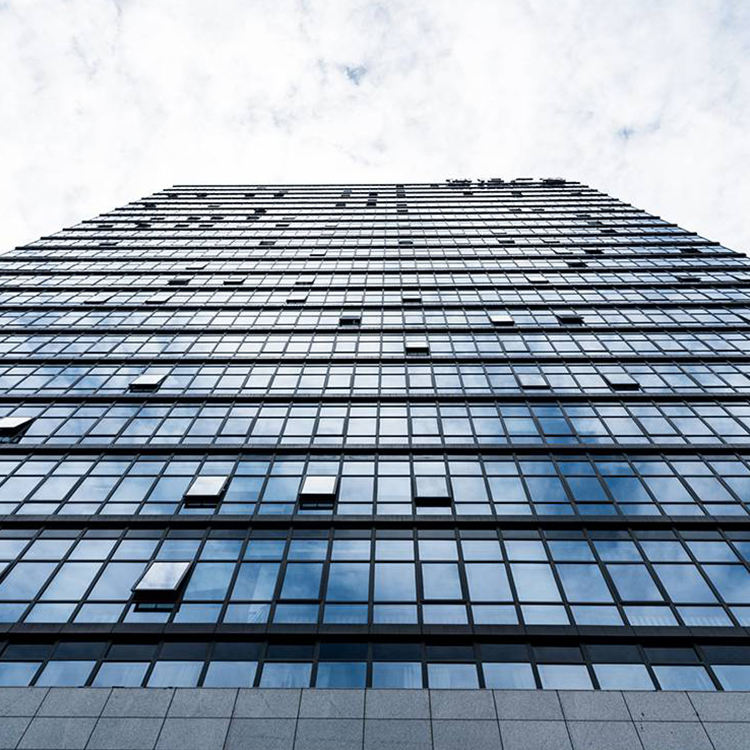

• High-rise office buildings and commercial towers

• Airport, railway station and public transportation hubs

• Shopping malls, exhibition centers and cultural architecture

• Coastal wind-resistant building facades

• Modern minimalist urban building exterior wall systems

Leader Aluminum supports full customization of curtain wall aluminum profiles, including custom mold development, structural optimization, multi-color surface treatment and finished frame processing. With mature export quality control system and engineering production experience, we provide stable and reliable facade aluminum solutions for global architectural contractors, construction companies and building material distributors.
