Aluminum Enclosure IP Rating Guide: Complete Selection Guide for Engineers | Aluleader

In the electronics and electrical industries, an enclosure is more than just a box—it is the first line of defense protecting sensitive components from environmental threats. Choosing the wrong enclosure can lead to premature equipment failure, safety hazards, and costly downtime.

This guide provides a comprehensive overview of IP (Ingress Protection) ratings for aluminum enclosures, helping engineers and procurement professionals make informed decisions for their projects. At Aluleader, with extensive experience manufacturing architectural profiles, industrial profiles, and furniture/decorative profiles, we understand the critical role that precision-engineered aluminum enclosures play in protecting electronic systems across diverse applications.

What Are IP Ratings?

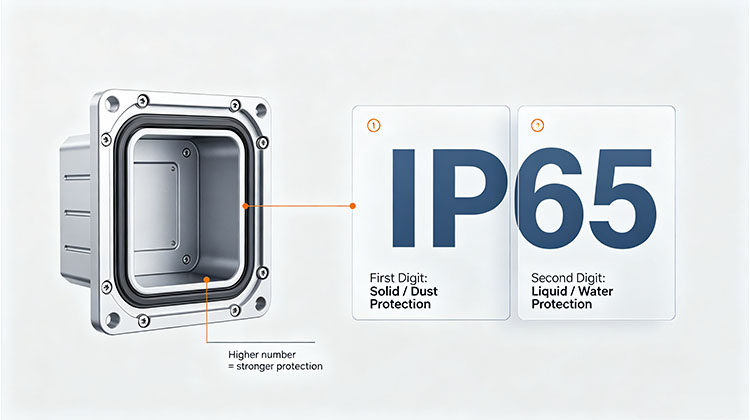

IP (Ingress Protection) ratings are an international standard defined by IEC 60529 (and its European equivalent EN 60529) that classifies the degree of protection provided by enclosures against the intrusion of solid objects, dust, and water. The rating consists of two letters—IP—followed by two digits: the first for solids protection, the second for liquids protection.

Understanding the First Digit: Solids Protection

The first digit ranges from 0 to 6, with 0 meaning no protection against solid objects and 6 meaning dust-tight—complete protection against dust ingress. The levels in between cover protection against objects of decreasing size: from hands (1), to fingers (2), to tools (3), and to wires (4). Level 5 indicates dust-protected, meaning dust may enter but in quantities that do not interfere with the equipment's operation. For most electronics applications that require any meaningful protection, a rating of 5 or 6 is specified for the first digit.

Understanding the Second Digit: Liquids Protection

The second digit ranges from 0 to 9K, with 0 meaning no protection against water and 8 meaning protection against continuous immersion under conditions specified by the manufacturer. Intermediate levels cover vertical dripping (1), dripping when tilted (2), spraying (3), splashing (4), water jets (5), powerful water jets (6), and temporary immersion (7). The highest rating, 9K, protects against high-pressure water jets and steam cleaning—a requirement for food processing and pharmaceutical applications.

It is important to note that watertightness is not a binary concept. Higher numbers do not always mean "better" in absolute terms—they indicate different levels of protection against specific conditions. For example, an enclosure rated IP66 can withstand powerful water jets but may not necessarily survive immersion, whereas an IP67 enclosure can survive temporary immersion but may have different characteristics for jet protection.

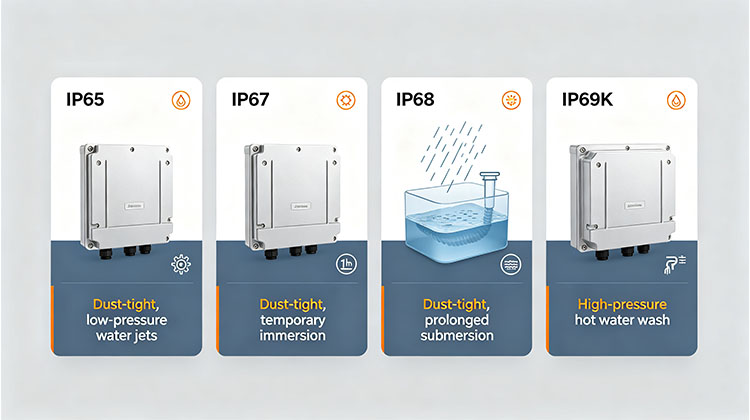

Common IP Ratings for Aluminum Enclosures

IP54

IP54 offers limited protection against dust ingress and protection against water splashes from any direction. This rating is suitable for indoor environments where occasional splashing may occur. IP54 is common in consumer electronics and light industrial applications where the equipment is not exposed to severe weather or washdown conditions.

IP65

IP65 provides dust-tight protection and protection against water jets from any direction. This is typically considered the minimum rating for "watertight" enclosures. Extruded aluminum enclosures meeting this rating are widely used in industrial control equipment, outdoor lighting, and telecommunications. The "5" means the enclosure is dust-protected, and the "6" means it can withstand low-pressure water jets.

IP66

IP66 offers dust-tight protection and protection against powerful water jets—specifically, 100 liters per minute at 100 kPa pressure from a distance of 3 meters. This rating is suitable for marine environments, outdoor industrial equipment, and heavy-duty applications where equipment may be exposed to heavy rain or hose-directed cleaning.

IP67

IP67 provides dust-tight protection and protection against temporary immersion in water—up to 1 meter depth for at least 30 minutes. This is often considered the "gold standard" for outdoor electronics, protecting against everything from desert dust to sudden rainstorms or flooding. Many outdoor sensors, security cameras, and telecommunications equipment specify IP67.

IP68

IP68 offers dust-tight protection and protection against continuous immersion in water, under conditions specified by the manufacturer. This is the highest waterproof rating for connection and enclosure products. While IP67 guarantees 30 minutes at 1 meter, IP68 can involve longer durations or greater depths, but the exact conditions must be specified by the manufacturer.

IP69K

IP69K provides dust-tight protection and protection against high-pressure water jets and steam cleaning. This is the highest IP rating commonly available and is used in applications requiring frequent washdowns, such as food processing, pharmaceutical manufacturing, and heavy industrial environments. The "9K" rating specifies protection against water at 80°C to 100°C and pressures up to 100 bar.

Why Choose Aluminum for Electronic Enclosures?

Aluminum is one of the most popular materials for electronic enclosures, and for good reason. The material offers a unique combination of properties that make it superior to plastics and other metals for many applications.

Natural EMI/RFI Shielding

Unlike plastic enclosures, which can act as "windows" for electromagnetic interference, aluminum provides natural electromagnetic and radio-frequency interference shielding. This makes aluminum the ideal choice for communications equipment, sensitive industrial control systems, and any application where signal integrity is critical. The conductive nature of aluminum creates a Faraday cage effect that blocks external electromagnetic fields and contains internal emissions.

Corrosion Resistance

Aluminum enclosures are resistant to corrosion even without special surface treatment. Using aluminum alloys with low copper content increases this natural corrosion resistance. Additional treatments such as powder coating, anodizing, or irriditing can further enhance protection in harsh environments. For coastal or marine applications, proper surface finishing is essential to prevent pitting and galvanic corrosion.

Impact Resistance

Aluminum offers superior impact resistance compared to plastics, with die-cast aluminum enclosures typically achieving IK08 or higher impact ratings. This means they can withstand significant force from tools, falling objects, or accidental collisions—critical in high-traffic industrial areas or public facilities. Plastics, by contrast, may crack, shatter, or deform under similar impacts.

Thermal Management

IP-rated aluminum enclosures are effectively sealed, which can create an "oven effect" where heat from internal components is trapped. Aluminum's inherent thermal conductivity—approximately 180-190 W/m·K—helps dissipate heat through the enclosure walls, preventing overheating of sensitive electronics. For high-temperature applications, designs may incorporate internal heatsinks or mount components directly to the enclosure wall to leverage this conductivity. This passive cooling capability is a significant advantage over plastics, which are thermal insulators.

Lightweight Yet Strong

Aluminum combines excellent strength-to-weight ratio—approximately one-third the density of steel—making it suitable for applications where weight is a consideration, from portable instrumentation to large outdoor equipment. This combination of strength and lightness also simplifies installation and mounting.

Extruded Aluminum vs. Die-Cast Aluminum Enclosures

Both extruded and die-cast aluminum are used for electronic enclosures, but they have distinct characteristics that make each suitable for different applications.

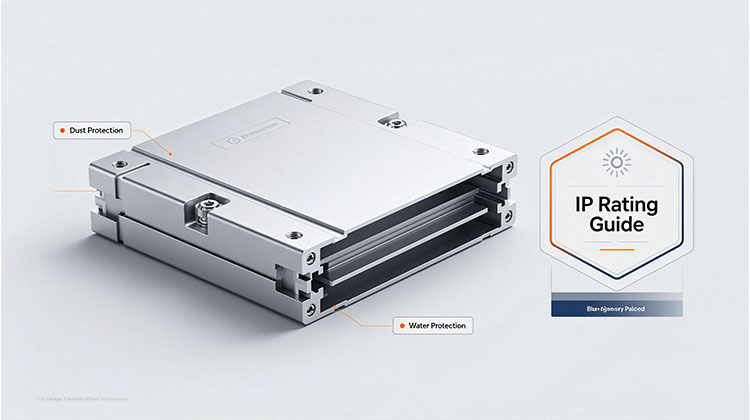

Extruded Aluminum Enclosures

Extruded aluminum enclosures are formed from a single, continuous extrusion with internal slots for PCB mounting. The extrusion process allows for excellent straightness and uniform wall thickness throughout the length of the enclosure. These enclosures are cost-effective for longer profiles and can include integrated features like recessed areas for labels or membrane keypads. Typical IP ratings for extruded aluminum enclosures range from IP54 to IP65. They are commonly used for standard industrial enclosures, desktop equipment, and rack-mount systems.

Die-Cast Aluminum Enclosures

Die-cast aluminum enclosures are cast as a single piece with thick walls for enhanced durability. The die-casting process allows for complex 3D geometries with ribs, bosses, and mounting features integrated directly into the design. These enclosures offer higher impact resistance (IK08 or higher) and can achieve higher IP ratings—IP66, IP67, IP68, and even IP69K. Die-cast enclosures are excellent for harsh environments, marine instrumentation, outdoor industrial controls, heavy machinery, and food processing equipment. The main trade-off is higher tooling investment, making die-cast enclosures more economical at higher production volumes.

NEMA Ratings: The North American Equivalent

While IP ratings are international, North American applications often reference NEMA (National Electrical Manufacturers Association) enclosure types. Understanding the relationship between IP and NEMA ratings is important for engineers specifying enclosures for the US and Canadian markets.

NEMA 4 and 4X enclosures are roughly equivalent to IP66, providing protection against rain, sleet, snow, splashing water, and hose-directed water. The "X" suffix indicates additional corrosion resistance. NEMA 6 and 6P enclosures correspond to IP67 and IP68 respectively, offering protection against temporary (6) or prolonged (6P) submersion. NEMA 12 and 13 enclosures are for indoor use, providing protection against dust, dirt, and non-corrosive liquids, with NEMA 13 adding protection against oil and coolant. These are roughly equivalent to IP54 to IP65.

Most aluminum enclosures from reputable manufacturers are tested and certified to both IP and NEMA standards, allowing customers to specify according to their regional requirements.

Application-Specific Selection Guide

Indoor General Electronics (IP54-IP65)

For typical indoor environments such as offices, light industrial facilities, and climate-controlled spaces, IP54 to IP65 ratings are generally sufficient. Extruded aluminum enclosures with these ratings provide excellent protection against dust and occasional splashing. Key features to look for include PCB mounting slots and recessed areas for keypads or displays. Common applications include desktop instruments, telecommunications equipment, and test and measurement devices.

Outdoor Equipment (IP65-IP66)

For outdoor applications exposed to rain, dust, and temperature swings, IP65 or IP66 ratings are recommended. Extruded or die-cast aluminum enclosures can meet these requirements. Important considerations include the UV resistance of the surface finish and thermal management to handle solar heat loading. Typical applications include solar controllers, traffic management systems, and outdoor sensors.

Marine and Harsh Environments (IP66-IP68)

For marine environments and other harsh conditions involving salt spray, high humidity, immersion, and high impact risk, IP66, IP67, or IP68 ratings are required. Thick-walled die-cast aluminum enclosures are typically specified for these conditions. Corrosion-resistant alloys with powder-coated or anodized finishes provide the necessary protection. Common applications include marine instrumentation, coastal monitoring equipment, and offshore oil and gas controls.

High-Pressure Washdown (IP69K)

For food processing, pharmaceutical, and heavy industrial applications requiring frequent high-pressure washdowns, IP69K is the appropriate rating. Die-cast aluminum enclosures with this rating can withstand water at temperatures up to 100°C and pressures up to 100 bar. Smooth surfaces to prevent bacterial growth and stainless steel hardware are important additional considerations. Typical applications include food production lines, chemical plants, and pharmaceutical manufacturing.

Important Design Considerations

Thermal Management

With IP-rated enclosures being effectively sealed, internal heat management is critical. Strategies for managing heat include selecting enclosures with adequate internal volume for air circulation, using the aluminum body itself as a heatsink through direct component mounting, and incorporating internal heatsink features where available. The thermal conductivity of aluminum—far superior to plastics—is a key advantage in these sealed systems.

Surface Finish

Surface finishes affect both corrosion resistance and dimensional tolerances. Anodizing adds corrosion and wear resistance while maintaining a metallic appearance, but it slightly increases outer dimensions. Powder coating provides excellent corrosion protection and unlimited color options but adds thickness to the outer dimensions. Irriditing (chemical conversion) produces a thin, conductive coating with minimal dimensional change and is often used as a base for painting. For customers seeking high-quality architectural profiles or industrial profiles, Aluleader offers a range of surface finishing options tailored to environmental requirements.

Gaskets and Seals

Achieving and maintaining IP ratings depends heavily on gasket quality. Common gasket materials include closed-cell polyethylene foam, which is standard for many extruded enclosures; silicone, which offers excellent temperature and UV resistance; and rubber O-rings, which are used around assembly screws to maintain seal integrity. Gaskets should be inspected periodically and replaced if signs of wear, compression set, or damage are observed.

Machining and Assembly

Important caution: IP ratings are typically tested on unmodified enclosures. Drilling, cutting, or machining the enclosure for cable entries, connectors, or displays can compromise the IP rating unless proper sealing measures are taken at all modified points. Always plan for cable glands, conduit fittings, or custom seals that maintain the required rating. Consult with your enclosure supplier about the best methods for maintaining IP integrity during modification.

Frequently Asked Questions (FAQ)

Q: What is the difference between IP65 and IP67?

A: IP65 protects against water jets from any direction, while IP67 protects against temporary immersion in water—specifically, up to 1 meter depth for at least 30 minutes. For outdoor applications with possible standing water or submersion risk, IP67 is the recommended choice. For applications only exposed to rain or hose-directed water, IP65 may be sufficient.

Q: Can I machine an IP-rated aluminum enclosure without losing its rating?

A: Yes, but proper precautions are required. Use certified cable glands, conduit fittings, or custom sealing methods at all entry points. The enclosure's original rating applies only to the unmodified unit. Any modification must be sealed to the same standard as the original enclosure to maintain the IP rating.

Q: Are aluminum enclosures corrosion-resistant in saltwater environments?

A: Aluminum has natural corrosion resistance, but for marine or coastal environments, choose alloys with low copper content and apply additional surface treatments such as powder coating, anodizing, or irriditing plus painting. Regular inspection and maintenance of the surface finish are also recommended.

Q: Which is better for electronic enclosures—extruded or die-cast aluminum?

A: Extruded aluminum is cost-effective for standard profiles with consistent cross-sections, while die-cast aluminum offers higher impact resistance and can achieve higher IP ratings (up to IP69K). Die-cast is generally preferred for harsh environments and outdoor applications where maximum protection is required.

Q: What is the IK impact rating, and how does it relate to IP rating?

A: IK rating (IEC 62262) measures mechanical impact resistance independent of IP rating. Many die-cast aluminum enclosures achieve IK08 or higher, meaning they can withstand significant impacts—equivalent to 5 joules of energy—without failing. This is critical for high-traffic industrial areas and public facilities where physical damage is a concern.

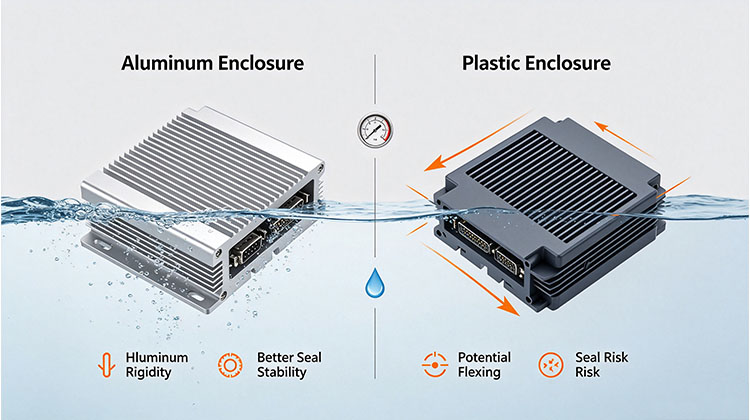

Q: How does aluminum compare to plastic for electronic enclosures?

A: Aluminum offers superior EMI/RFI shielding, better thermal management, higher impact resistance, and greater durability compared to plastic. Plastic enclosures are generally lighter and less expensive for high-volume applications but lack the conductive properties and heat dissipation capabilities of aluminum.
